• Building structure: H - beam, I - beam, steel - mixed square beam,

  ball - column structure.

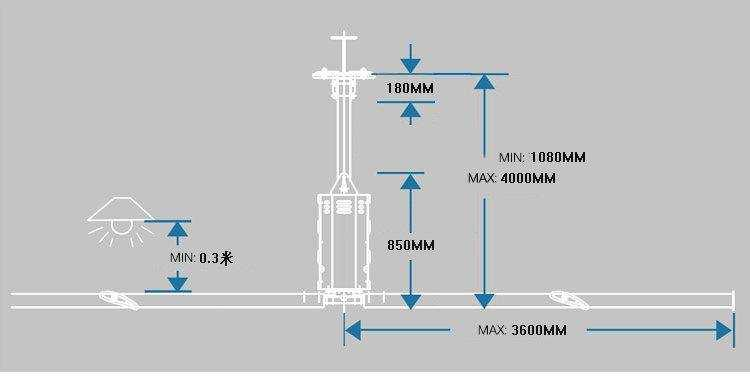

• The total height of the building is required to be greater than 4.0m and

  less than 15m.

• The minimum distance from the middle of the fan to the roof is 1.0m.

• The minimum safe distance between the fan blade and the obstacle is

  0.3m

• Power supply: Three phase 380V

• Building structure: H - beam, I - beam, steel - mixed square beam, ball - column structure.

• The total height of the building is required to be greater than 4.0m and  less than 15m.

• The minimum distance from the middle of the fan to the roof is 1.0m.

• The minimum safe distance between the fan blade and the obstacle is 0.3m

• Power supply: Three phase 380V

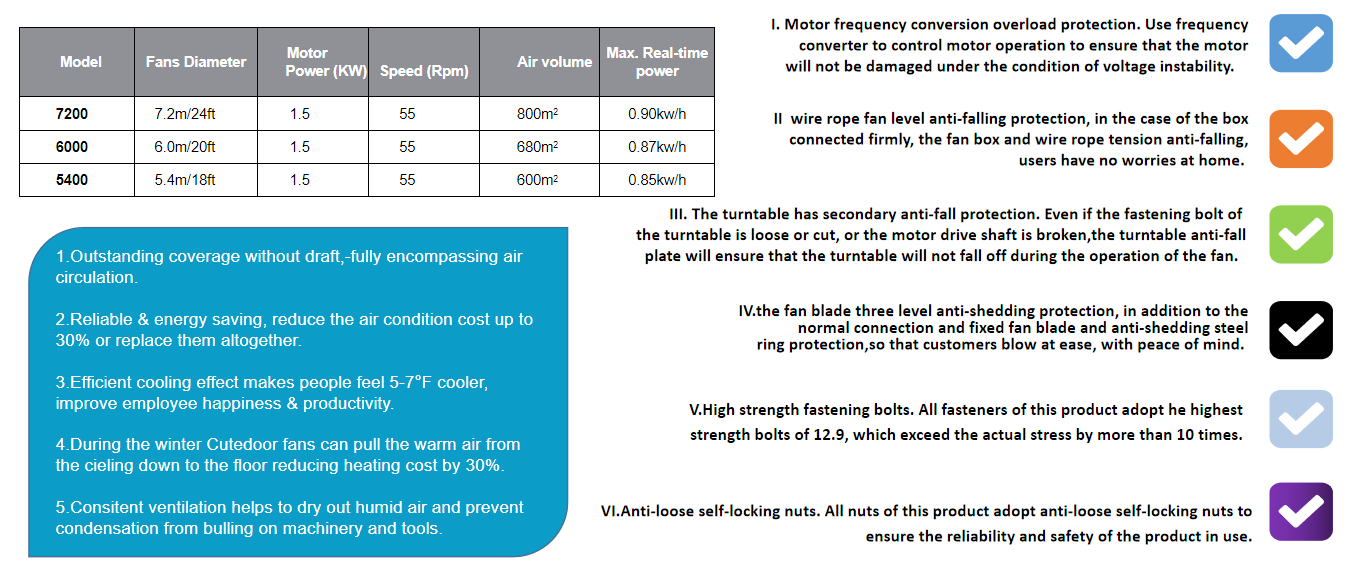

2.Reliable & energy saving, reduce the air condition cost up to 30% or replace them altogether.

3.Efficient cooling effect makes people feel 5-7°F cooler, improve employee happiness & productivity.

4.During the winter Cutedoor fans can pull the warm air from the cieling down to the floor reducing heating cost by 30%.

5.Consitent ventilation helps to dry out humid air and prevent condensation from bulling on machinery and tools.
