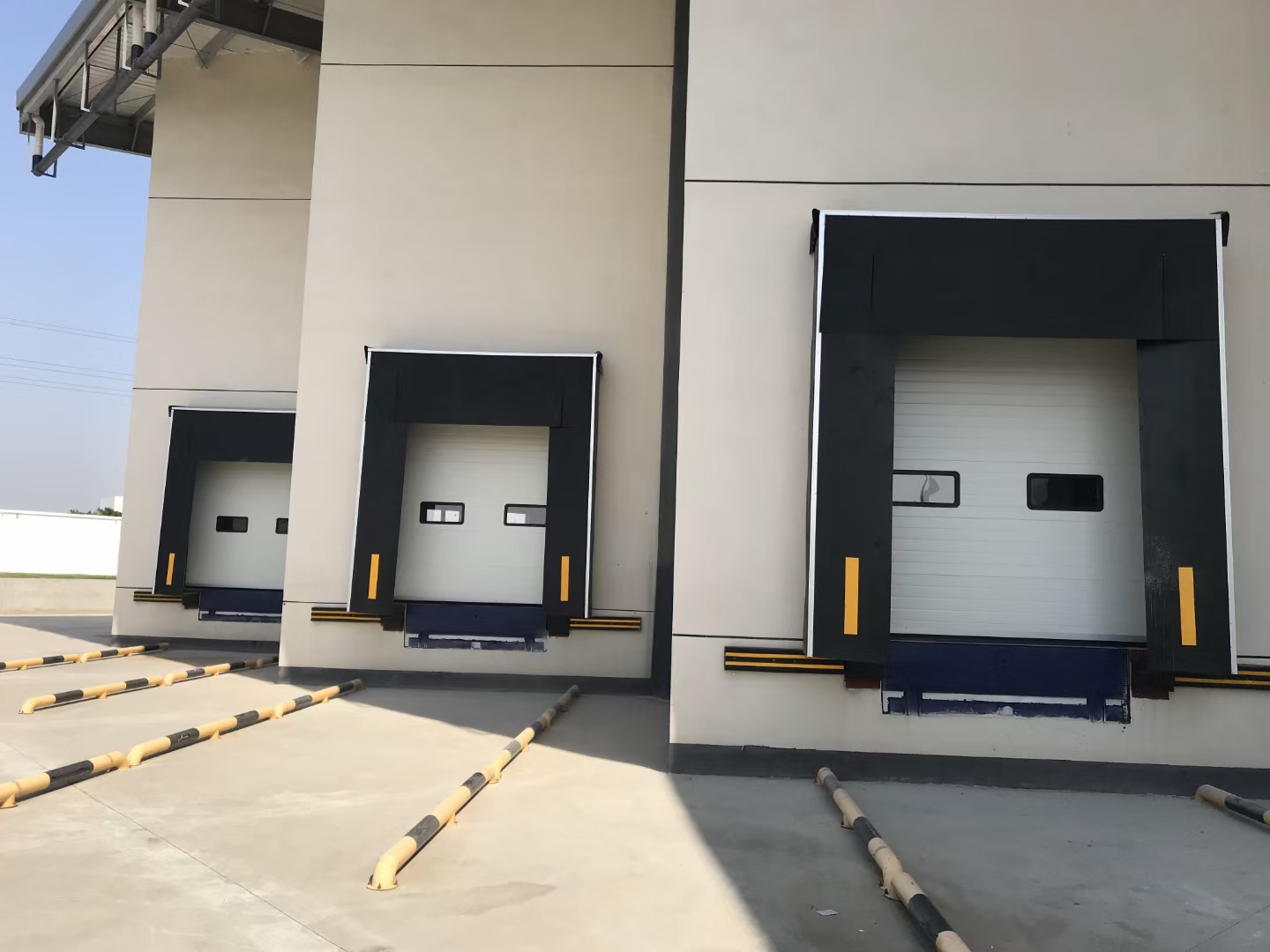

Dock Leveler

Dock Leveler

  • Specification
  • Features

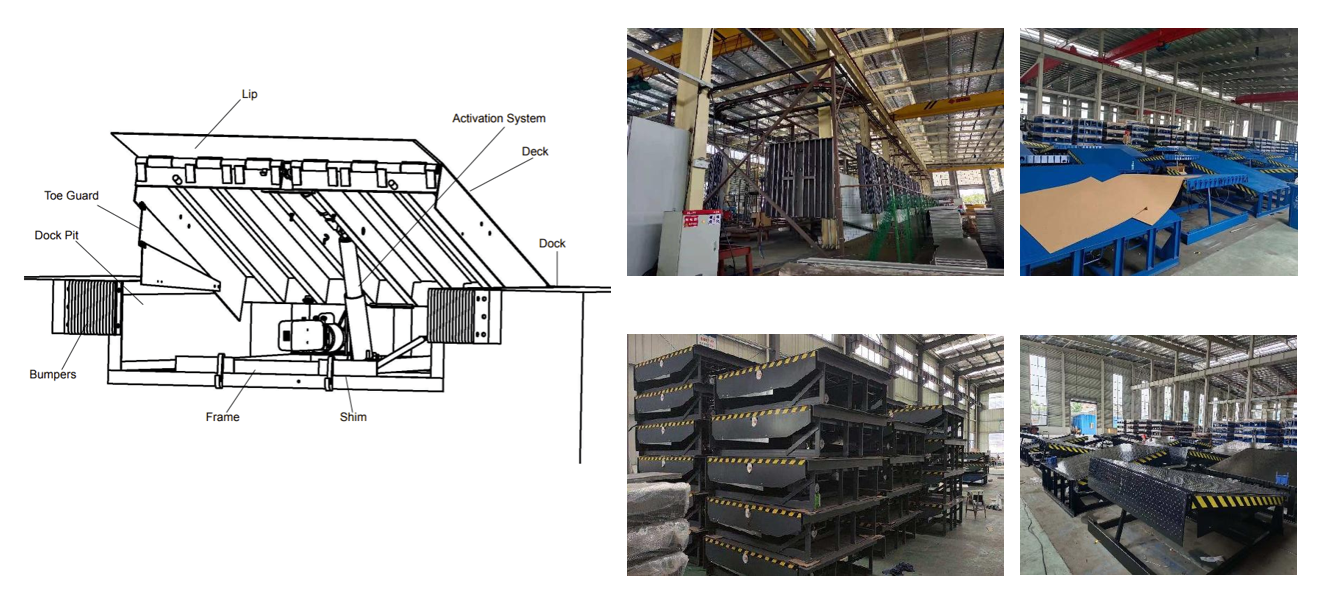

  • Structure blueprint
  • Technical description

Main structure

A single lip hinge pin enables a stronger distributed load.

8mm thk high strength pattern steel plate

Duck The continuous one-piece headboard strengthens the front structure of the deck,the tkn of steel plate ≥14mm.

A minimum of eight heavy duty C-beams are welded to the underside of the deck at dynamic impact points,Structural “C” Channel offers matchless deck
support-providing a 39% greater resistance to elastic bending moments than other industry designs, extending the
life of the dock leveler.

solid steel supports for rear hinge

Capacity

Static Capacity:10ton, Dynamic Capacity:6.5ton

Adjustment

+/-300mm Above /below Dock

Bumper

2pcs laminated rubber dock bumper sections

Lamp self-locking device

self-locking function

Hydraulic system

Width≤2.5m, single hydraulic cylinder

Width>2.5m, double hydraulic cylinder

The integrated design of the hydraulic system is simple and reliable to operate, effectively reduce the
maintenance frequency

Reliable hydraulic safety valve can effectively prevent the loading and unloading platform in the load-bearing state of free fall

The hydraulic system is equipped with emergency braking function in case of sudden accident or no
power supply

Control button

Standard 3 button - according to the site conditions can be set with industrial door integrated control

Power control

AC 380V, Three Phrase, 50HZ, 750w,IP54

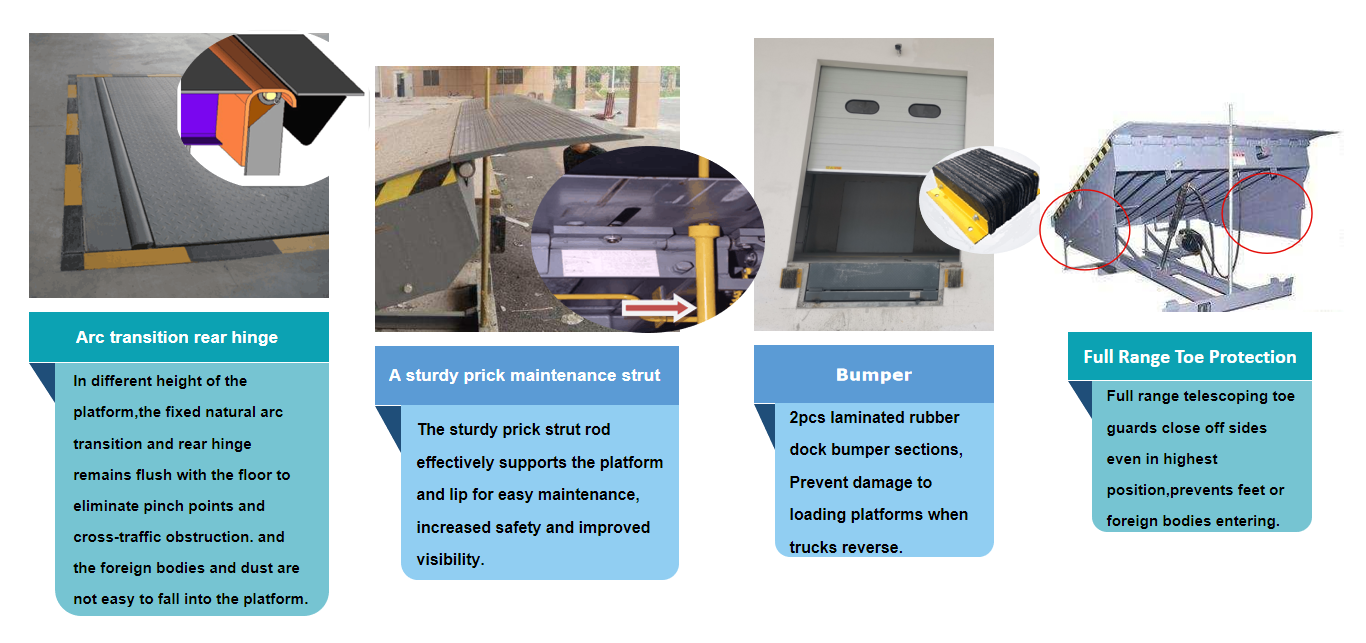

maintenance strut

A sturdy prick maintenance strut prevents accidents during cleaning and servicing.

Full Range Toe Protection

Full range telescoping toe guards close off sides even in highest position,prevents feet or foreign
bodies entering.

Safety features

Safety valve, safety baffle, anti-collision block, anti-cutting toe protection, support rod, power emergency self-locking function


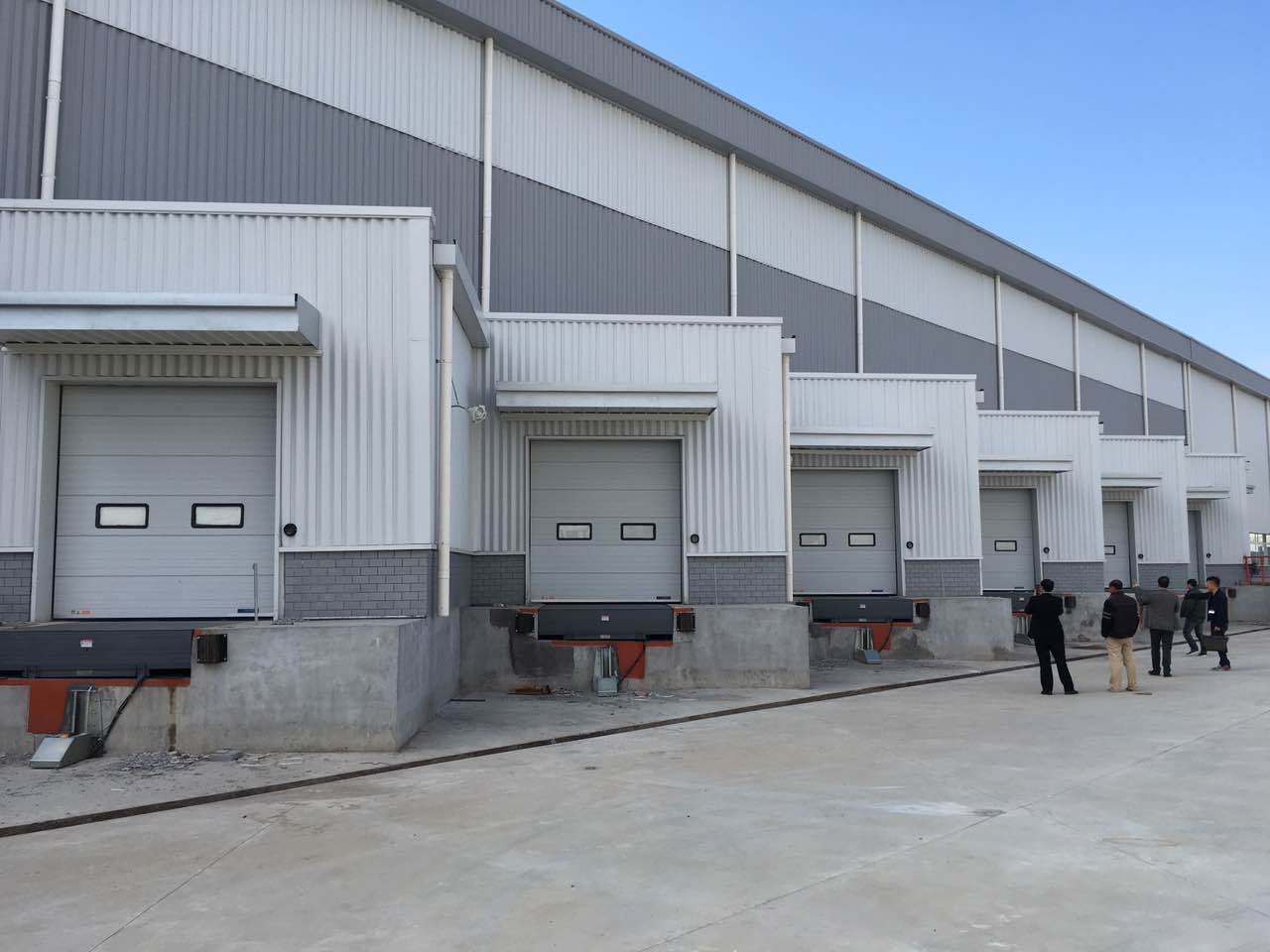

The hydraulic dock levelers are designed to handle the fast pace of busy loading docks. Advanced hydraulic technology and standard features like regenerative hydraulics, premier lug-style lip hinges, Lambda beam structure and unique open-frame designs keep productivity high and maintenance costs low.
